AIM AIM 100

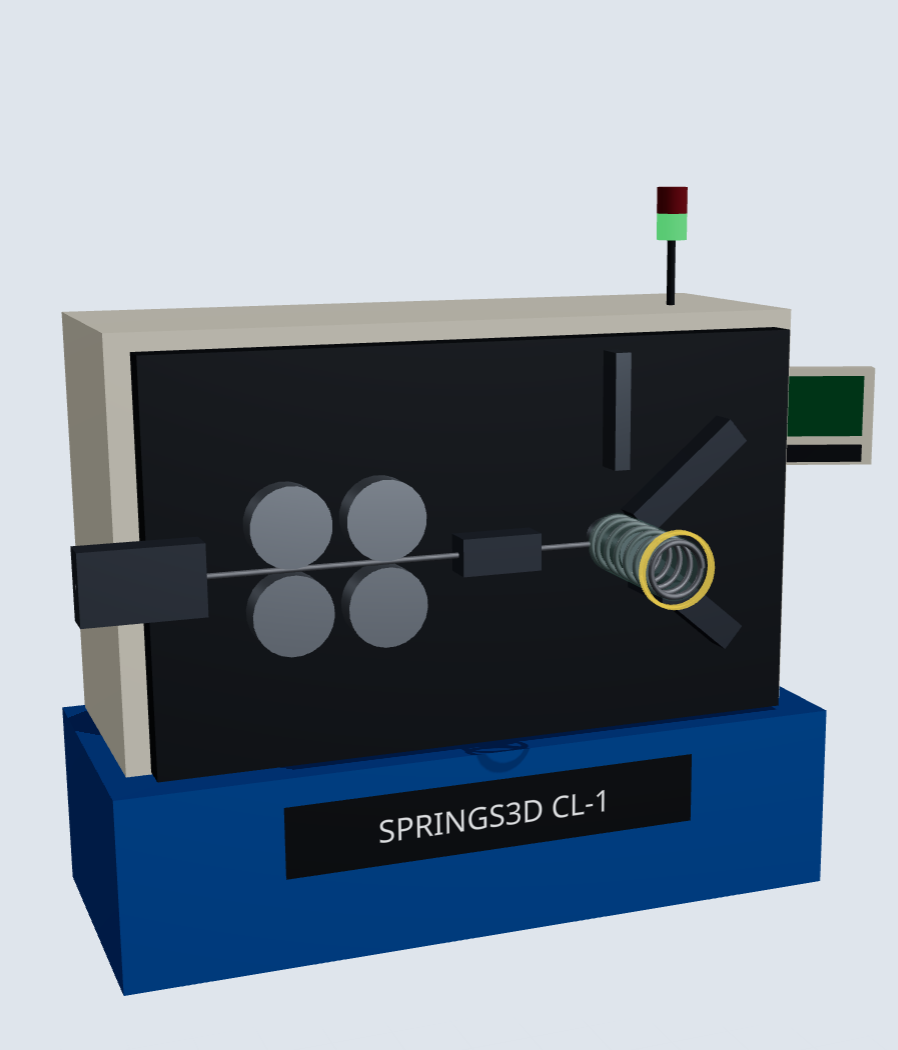

3D illustration from Springs3d Studio, not a manufacturer photo.
American fine-wire coiler with up to six axes.
Specifications
| Manufacturer | AIM |
|---|---|
| Country | United States |
| Type | CNC spring coiler |
| Status | In production |
| Wire range | 0.15–0.81 mm |
| Axes | 6 |
| Max outside diameter | 25 mm |
| Speed | 135 in/s |
Specifications compiled from public manufacturer or dealer documentation; they vary by configuration and year. Always confirm with the manufacturer before deciding. Source ↗
Design a spring for this machine
Open Springs3d Studio, add your machine to the library and design with real-time limit checking.
Open in Springs3d Studio
About AIM
AIM (Automated Industrial Motion) of Grand Haven, Michigan builds the AIM 100 through 4000 CNC coiler series, from 0.15 mm fine wire to 20 mm bar.
View brand page →Official website ↗
Frequently asked questions
What wire range does the AIM AIM 100 run?
Per public documentation, the AIM AIM 100 runs wire from 0.15 to 0.81 mm in diameter.
What kind of machine is the AIM AIM 100?
The AIM AIM 100 is a CNC spring coiler made by AIM (United States).
Can I design for the AIM AIM 100 in Springs3d Studio?
Yes. In Springs3d Studio you can register the machine with its limits in your library and design inside its envelope, with warnings when the design drifts out of range.
