Itaya
JapanOfficial website ↗
Itaya Seisakusho is a Japanese maker of CNC spring coilers and formers, a fine-wire repeatability reference across the PC, CK, CX and PCX series and the RX forming centers.
Models

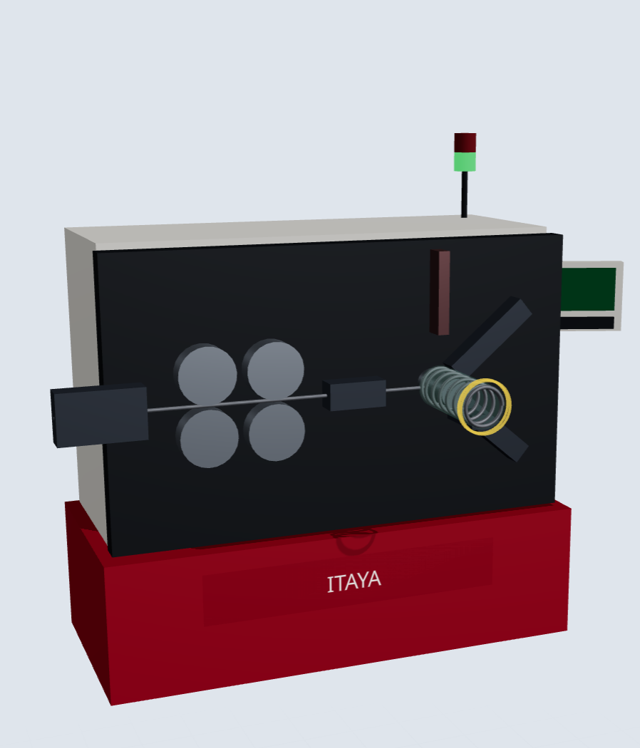

PC-8B
Wire range: 0.1–0.8 mm
CK-8
Wire range: 0.1–0.8 mm
CX-8B
Wire range: 0.1–0.8 mm
PCX-40A
Wire range: 1.5–4 mm
RX-20B
Wire range: 0.5–2 mm
RX-60
Wire range: 2–6 mm
PC-15
Wire range: 0.3–1.5 mm
Spec comparison
| Type | Speed | ||||
|---|---|---|---|---|---|
| PC-8B | CNC spring coiler | 0.1–0.8 mm | 5 | 25 mm | 313 m/min |
| CK-8 | CNC spring coiler | 0.1–0.8 mm | 4 | 16 mm | 200 m/min |
| CX-8B | CNC spring coiler | 0.1–0.8 mm | 6 | 15 mm | 217 m/min |
| PCX-40A | CNC spring coiler | 1.5–4 mm | – | 70 mm | 110 m/min |
| RX-20B | Spring forming machine | 0.5–2 mm | 15 | – | 82 m/min |
| RX-60 | Spring forming machine | 2–6 mm | 14 | – | 64 m/min |
| PC-15 | CNC spring coiler | 0.3–1.5 mm | – | 40 mm | 90 m/min |
Specifications compiled from public manufacturer or dealer documentation; they vary by configuration and year. Always confirm with the manufacturer before deciding.
These machines are integrated with Springs3d Studio: pick one and design a spring that is compatible with its limits from the start.
Open in Springs3d StudioAbout Itaya
Itaya Seisakusho is a Japanese maker of CNC spring coilers and formers, a fine-wire repeatability reference across the PC, CK, CX and PCX series and the RX forming centers.
