SIMCO
TaiwanOfficial website ↗
SIMCO is one of Taiwan's most established spring machinery makers, with CNC coilers spanning 0.13 mm micro wire to 32 mm bar in the YJ line, plus SFX camless formers.
Models

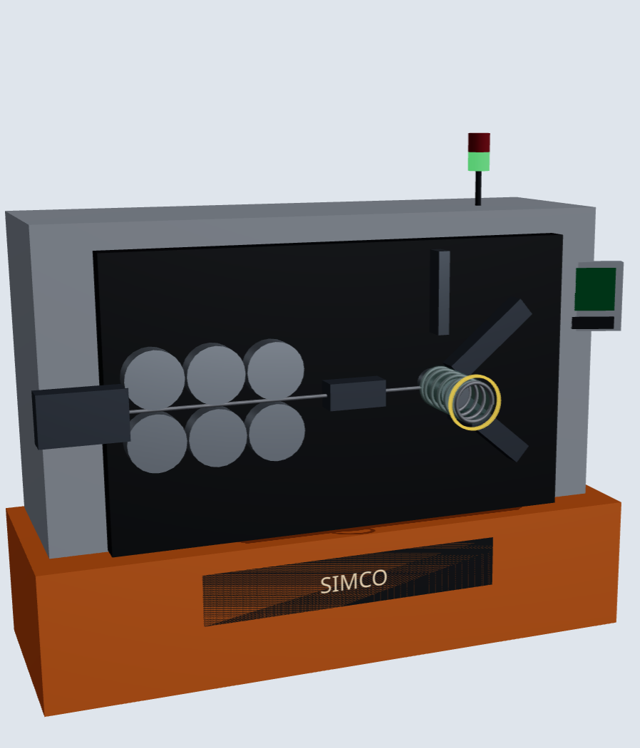

CSC-208
Wire range: 0.13–0.8 mm
CSC-508
Wire range: 0.13–0.8 mm
CSC-532
Wire range: 1.4–3.2 mm
SFX-10
Wire range: 0.1–1 mm
SFX-60
Wire range: 2.3–6 mm
YJ-160
Wire range: 8–16 mm
YJ-320
Wire range: 20–32 mm
Spec comparison
| Type | Speed | ||||
|---|---|---|---|---|---|
| CSC-208 | CNC spring coiler | 0.13–0.8 mm | 2 | 20 mm | 550 pcs/min |
| CSC-508 | CNC spring coiler | 0.13–0.8 mm | 5 | 20 mm | 800 pcs/min |
| CSC-532 | CNC spring coiler | 1.4–3.2 mm | 5 | 50 mm | 200 pcs/min |
| SFX-10 | Camless CNC former | 0.1–1 mm | 18 | 25 mm | – |
| SFX-60 | Camless CNC former | 2.3–6 mm | 18 | 120 mm | – |
| YJ-160 | CNC spring coiler | 8–16 mm | 13 | 250 mm | – |
| YJ-320 | CNC spring coiler | 20–32 mm | 13 | 300 mm | – |
Specifications compiled from public manufacturer or dealer documentation; they vary by configuration and year. Always confirm with the manufacturer before deciding.
These machines are integrated with Springs3d Studio: pick one and design a spring that is compatible with its limits from the start.
Open in Springs3d StudioAbout SIMCO
SIMCO is one of Taiwan's most established spring machinery makers, with CNC coilers spanning 0.13 mm micro wire to 32 mm bar in the YJ line, plus SFX camless formers.
